Guardrail Pile Driver for Truck

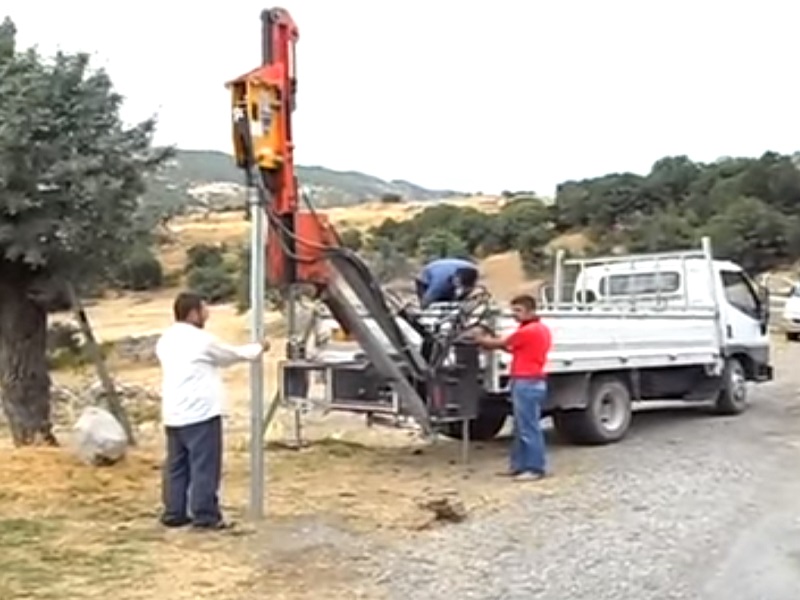

It is specially designed for driving the highway poles required within the scope of Highway Road Safety precautionary works. It offers a professional solution in accordance with the required power and other features for the installation of signs, barriers and guardrails used on highways.

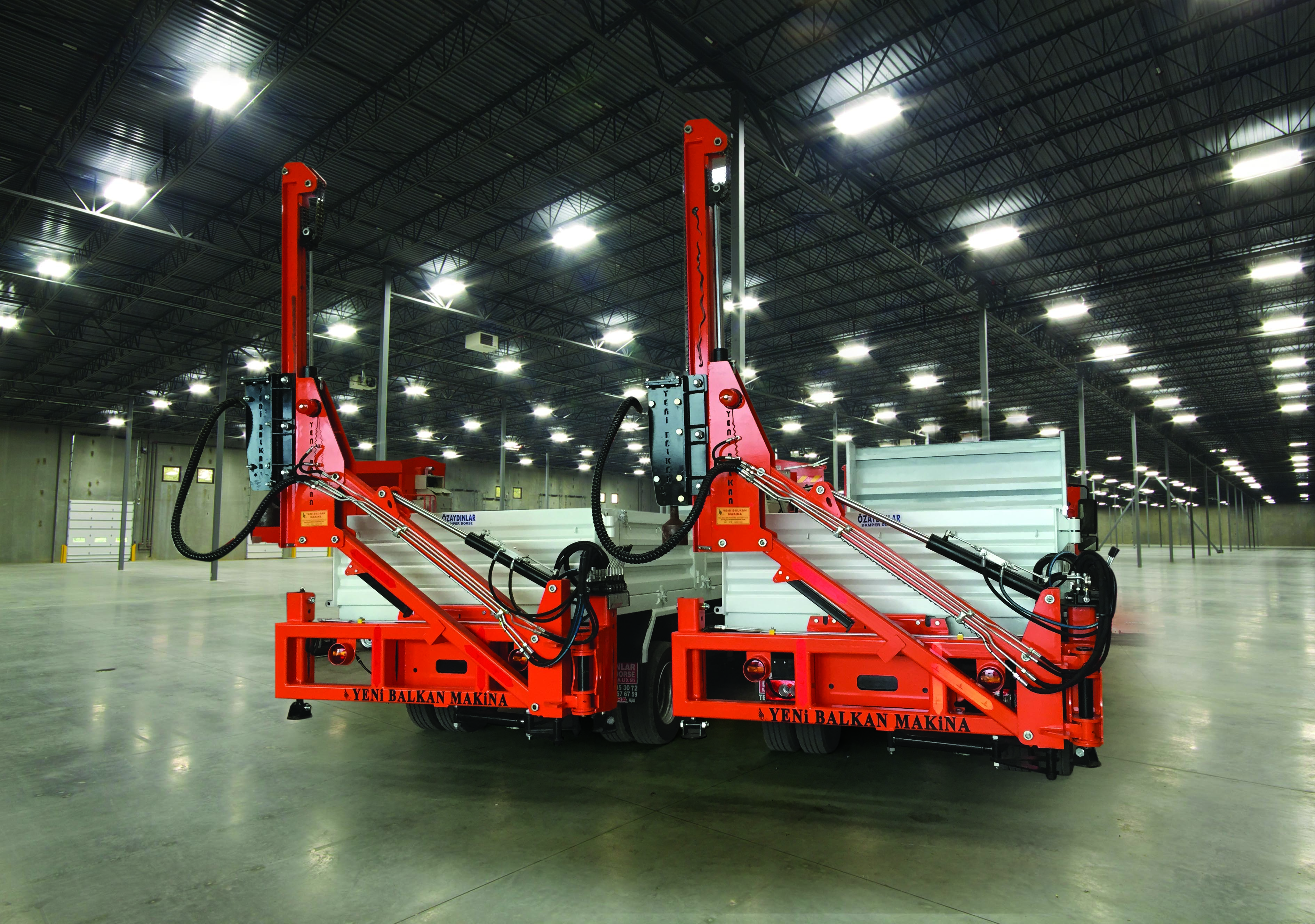

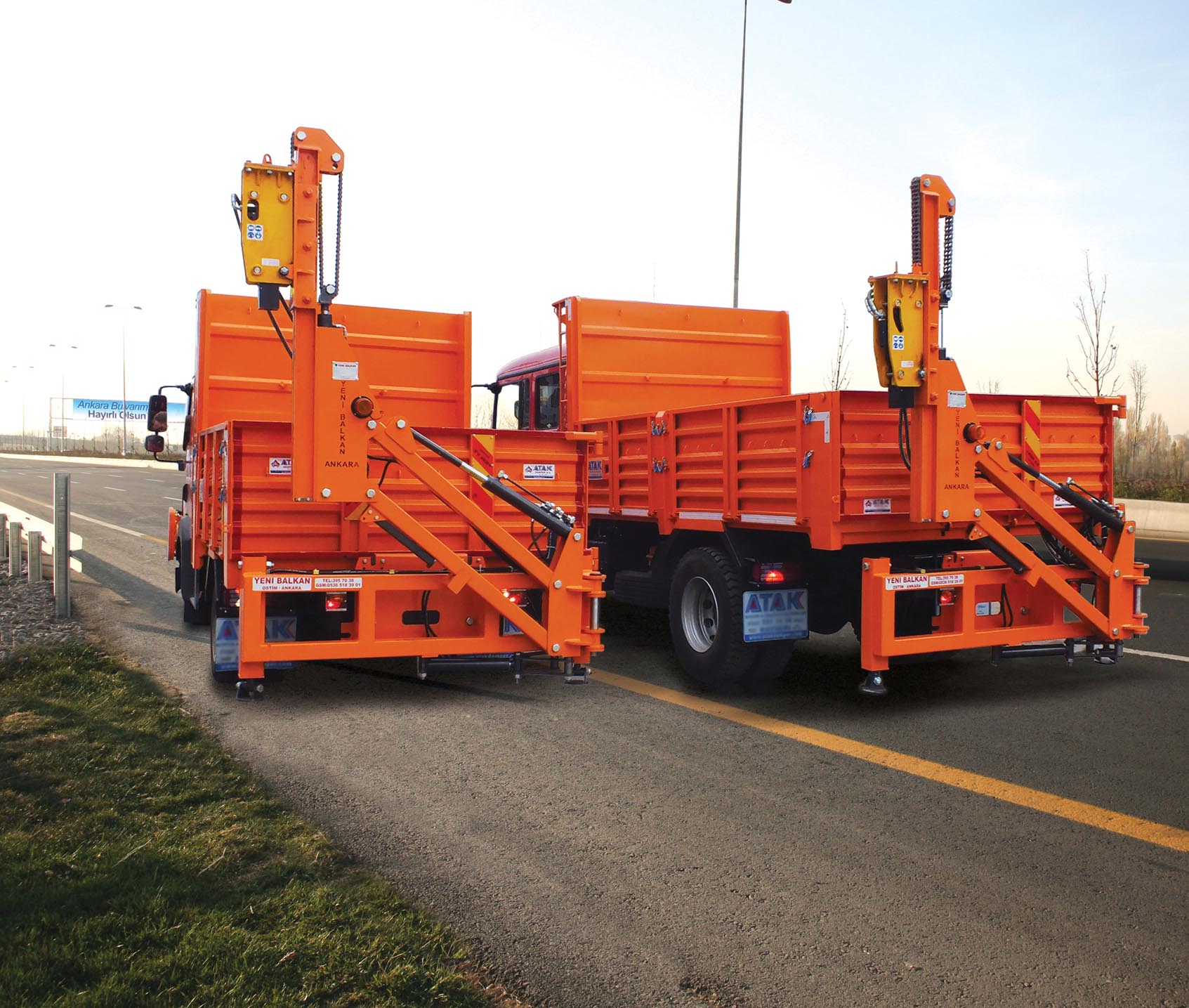

The guardrail driver, mounted on the back of the truck, offer a practical and fast solution in highway works with their mobility and the possibility of carrying poles, plates and guardrails.

Technical Features
Height 2600mm - 3500mm
Type Hydraulic
Hammer Power 230 Joule
Operating Weight 110kg
Operating Pressure 85 - 150 bar
Hammer Rate 600 - 1150 hits/min
Carrier Weight 1 - 3 tonnes
Total Equipment Weight 800- 900kg
